A circuit breaker is an electrical protection device that is designed to automatically interrupt the flow of electric current in an electrical circuit in the event of an excessive current, such as an overload or a short circuit. They work by detecting the excessive current and then interrupting the flow of electric current by breaking the circuit. Circuit breakers help prevent electrical faults and reduce the risk of fire.
Circuit breakers are recognized as critical units in aircraft electrical systems. In an aircraft, circuit breakers are usually located in the electrical panel, most commonly located in the cockpit or avionics bay. They are designed to be easily accessible by the pilot in case of emergency, allowing the pilot to manually trip the breaker and disconnect the electrical system if necessary.
A320 Aircraft CB Panels are located on –

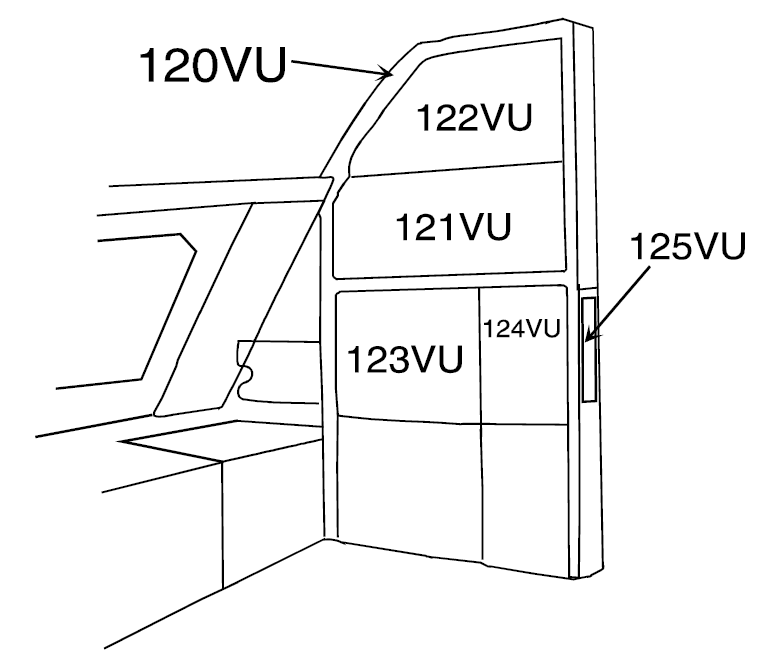

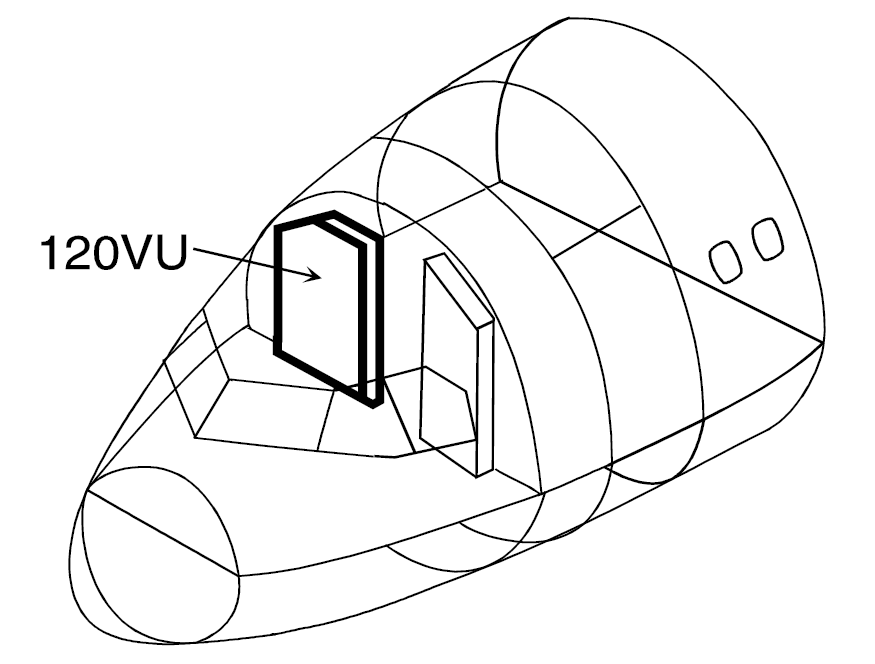

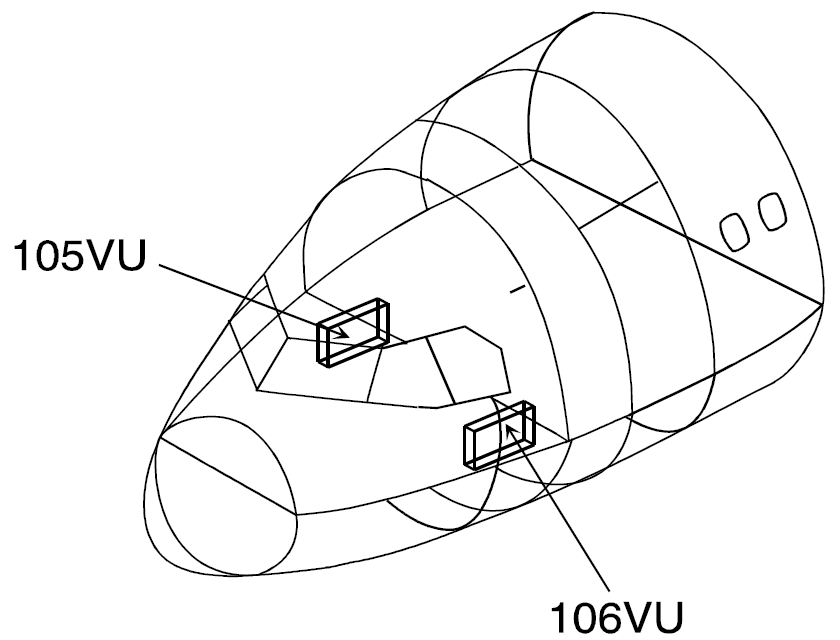

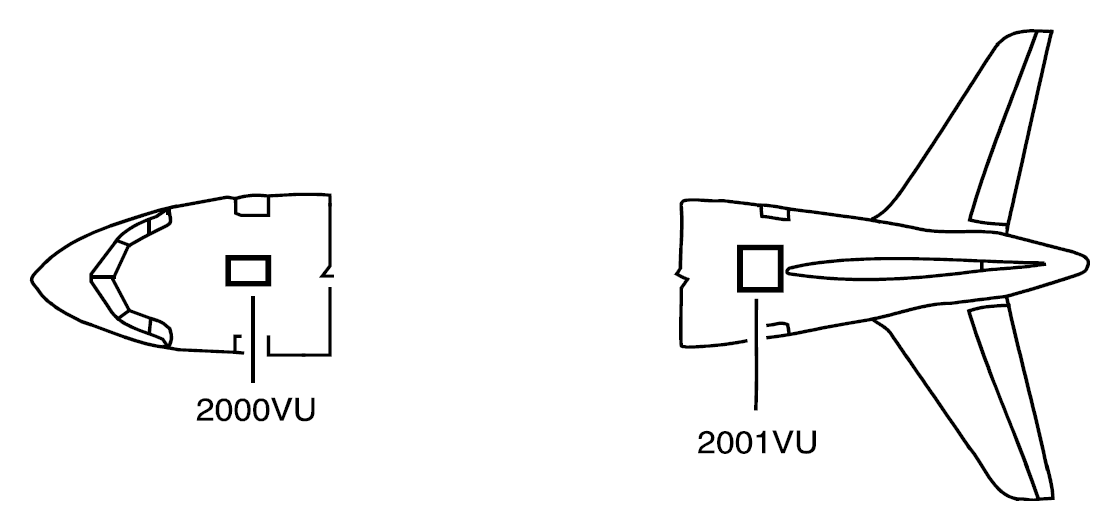

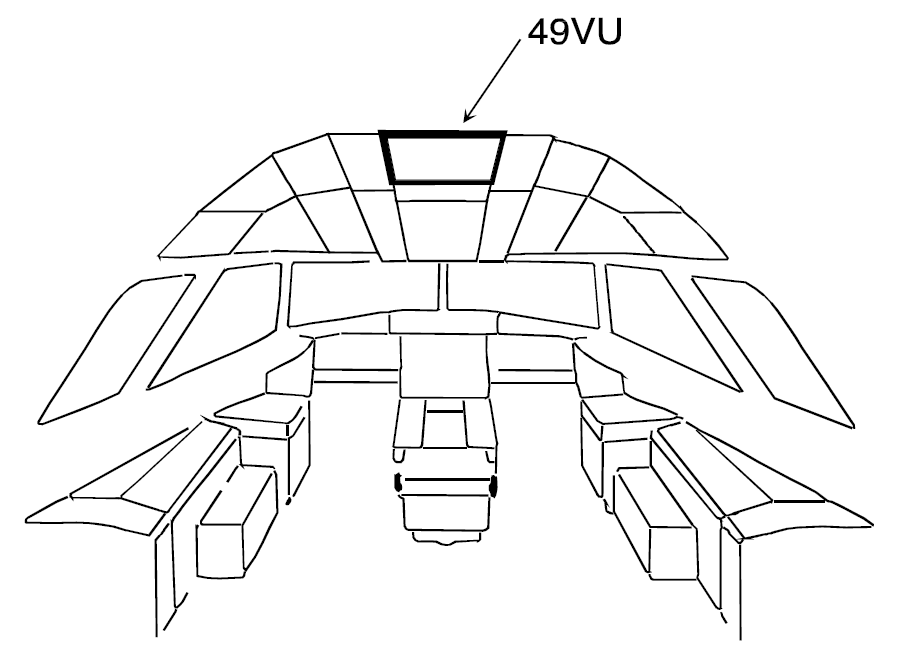

49 VU – COCKPIT OVERHEAD PANEL 105 VU – RH AVIONICS COMPARTMENT 106 VU – LH AVIONICS COMPARTMENT 121 VU – COCKPIT REAR PANEL 122 VU – COCKPIT REAR PANEL 123 VU – COCKPIT REAR PANEL 124 VU – COCKPIT REAR PANEL 125 VU – COCKPIT REAR PANEL 2000 VU – CABIN FWD GALLEY 2001 VU – CABIN AFT GALLEY A320 CB PANEL LOCATION AIR CONDITIONING CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 21 AIR COND/FLOW/CTL &/IND1 49VU D07 1HB 21 AIR COND/RAM/AIR/INLET 49VU D10 1HZ 21 AIR COND/CAB/PRESS/CTL1 49VU D09 1HL 21 AIR COND/AVNCS VENT/CTL 49VU D06 6HQ 21 AIR COND/AVNCS VENT/CTL 49VU D05 5HQ 21 AIR COND/AFT CARGO/VENT/CTL & MONG 49VU C07 31HN 21 AIR COND/TEMP CTL/SYS 1 CHAN B/28VDC 49VU D08 52HH 21 AIR COND/TEMP/CTL/IND 49VU D07 58HH 21 AIR COND/AFT CARGO VENT & HTG/CTL &/MONG 49VU C07 31HN 21 AIR COND/FLOW/MIXER/FLAP 122VU V22 3HB 21 AIR COND/FLOW/CTL AND IND/2 122VU V21 2HB 21 AIR COND/ZONE TEMP CTL/28VDC/SYS2 122VU V20 4HK 21 AIR COND/ZONE TEMP CTL/28VDC/SYS1 122VU V19 3HK 21 AIR COND/ZONE TEMP CTL/115VAC/SYS2 122VU V18 2HK 21 AIR COND/ZONE TEMP CTL/115VAC/SYS1 122VU V17 1HK 21 AIR COND/PACK TEMP/CTL SYS1/2/115VAC 122VU W22 21HH 21 AIR COND/PACK TEMP/CTL SYS1/2/28VDC 122VU W21 23HH 21 AIR COND/PACK TEMP/CTL SYS1/1/115VAC 122VU X22 1HH 21 AIR COND/PACK TEMP/CTL SYS1/1/28VDC 122VU X21 3HH 21 AIR COND/PACK TEMP CTL SYS2/2/28VDC 122VU Y21 24HH 21 AIR COND/PACK TEMP CTL SYS2/2/115VAC 122VU Y20 22HH 21 AIR COND/PACK TEMP CTL SYS2/1/28VDC 122VU Y19 4HH 21 AIR COND/PACK TEMP CTL SYS2/1/115VAC 122VU Y18 2HH 21 AIR COND/LAV/GALLEY VENT CTL/EXTRACT FAN/CTL 122VU U21 5HU 21 AIR COND/LAV/GALLEY VENT CTL/EXTRACT FAN/SPLY 122VU U19 6HU 21 AIR COND/RECIRC FAN/R/CTL 122VU W20 11HG 21 AIR COND/RECIRC FAN/R/SPLY 122VU W18 3HG 21 AIR COND/RECIRC FAN/L/CTL 122VU X20 2HG 21 AIR COND/RECIRC FAN/L/SPLY 122VU X18 1HG 21 AIR COND/CAB PRESS/CTL/MAN 122VU Y23 3HL 21 AIR COND/CAB PRESS/CTL/2 122VU Y22 2HL 21 AIR COND/AVNCS/VENT/MONG 122VU Y17 3HQ 21 AIR COND/AFT CARGO VENT/FAN 122VU S22 30HN 21 AIR COND/TEMP CTL SYS 2/CHAN A/115VAC 122VU W22 53HH 21 AIR COND/TEMP CTL SYS 2/CHAN A/28VDC 122VU W21 55HH 21 RPCU 122VU X23 4HL 21 AIR COND/TEMP CTL SYS 1/CHAN A/115VAC 122VU X22 49HH 21 AIR COND/TEMP CTL SYS 1/CHAN A/28VDC 122VU X21 51HH 21 AIR COND/TEMP CTL SYS 2/CHAN B/28VDC 122VU Y21 56HH 21 AIR COND/TEMP CTL SYS 2/CHAN B/115VAC 122VU Y20 54HH 21 AIR COND/TEMP CTL SYS 1/CHAN B/115VAC 122VU Y18 50HH 21 AVNCS VENT/EXTC/FAN 123VU AC04 2HQ 21 AVNCS VENT/BLOWER/FAN 123VU AD10 1HQ 21 AVNCS VENT/EXTC/FAN 123VU
AUTOFLIGHT CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 22 AUTO FLT/FCU/1 49VU B05 9CA1 22 AUTO FLT/FAC1/28VDC 49VU B04 5CC1 22 AUTO FLT/FAC1/26VAC 49VU B03 14CC1 22 AUTO FLT/FMGC/1 49VU B02 10CA1 22 AUTO FLT/MCDU/1 49VU B01 11CA1 22 AUTO FLT/FCU/2 121VU M21 9CA2 22 AUTO FLT/RUDDER/TRIM/IND 121VU M20 15CC 22 AUTO FLT/FAC2/28VDC 121VU M19 5CC2 22 AUTO FLT/FAC2/26VAC 121VU M18 14CC2 22 AUTO FLT/FMGC/2 121VU M17 10CA2 22 AUTO FLT/MCDU/2 121VU N20 11CA2 22 AUTO FLT/RUDDER/ARTF/FEEL 121VU N17 14CA 22 AUTO FLT/STICK/LOCK 121VU N16 13CA 22 AUTO FLT/MCDU/3 121VU N21 11CA3
COMMUNICATIONS CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 23 COM/AUDIO/FLT/INTPH 49VU G08 9RN 23 COM/AUDIO/ACP/F/O 49VU G07 5RN 23 COM/AUDIO/ACP/CAPT 49VU G06 4RN 23 COM/CIDS/DEU A ESS/LINE 2 49VU G05 155RH 23 COM/CIDS/DEU A ESS/LINE 1 49VU G04 154RH 23 COM DIR ESS/2 49VU G02 157RH 23 COM/CIDS/DIR ESS/1 49VU G01 150RH 23 COM/CVR/SPLY 49VU E14 2RK 23 COM/CVR/CTL 49VU E13 4RK 23 COM/RMP/1 49VU G10 2RG1 23 COM/VHF/1 49VU G09 2RC1 23 COM/CIDS/DEU B/ESS 49VU G03 153RH 23 INT 1 + 2 49VU G08 9RN 23 ACP F/O BITE INT 2 AUDIO 3/5 OCCPNT 49VU G07 5RN 23 ACP CAPT SELCAL INT 1 AUDIO AVNCS 49VU G06 4RN 23 COM / CIDS / DEU A ESS / MID R 49VU G05 196RH 23 COM / CIDS / DEU A ESS / MID L 49VU G04 195RH 23 COM/CIDS/FLT ATTND PNL/ESS 49VU H01 171RH 23 COM/CIDS/DEU A ESS/AFT R 49VU HA12 172RH 23 COM/CIDS/DEU A ESS/AFT L 49VU HA11 179RH 23 COM/CIDS/DEU A ESS/FWD R 49VU HA10 158RH 23 COM/CIDS/DEU A ESS/FWD L 49VU HA09 159RH 23 COM/CIDS/DIR 1 AND 2/ESS 49VU G02 150RH 23 COM/CIDS/DIR ESS/2 49VU G02 157RH 23 COM HF1 49VU HA14 1RE1 23 COM NAV/ACARS/MU 121VU L06 2RB 23 COM NAV/CIDS/FWD ATTND/PNL 121VU M14 170RH 23 AUDIO MIXING 121VU K03 14WW 23 COM NAV/VHF/3 121VU L05 2RC3 23 COM NAV/RMP/3 121VU L03 2RG3 23 COM NAV/CIDS/DEU A NORM/R MID 121VU M13 166RH 23 COM NAV/CIDS/DEU A NORM/L MID 121VU M12 165RH 23 COM NAV/CIDS/DEU A NORM/R FWD 121VU M11 164RH 23 COM NAV/CIDS/DEU A NORM/L FWD 121VU M10 163RH 23 COM NAV/CIDS/DEU B/NORM 121VU M09 162RH 23 COM NAV/CIDS/PROG &/TST PNL 121VU M08 161RH 23 COM NAV/CIDS/DIR NORM/2 121VU M07 156RH 23 COM NAV/CIDS/DIR NORM/1 121VU M06 151RH 23 COM/CIDS/DEU A BAT/LINE 2 121VU N14 145RH 23 COM/CIDS/DEU A BAT/LINE 1 121VU N13 144RH 23 COM/CIDS/DEU B/BAT 121VU N12 143RH 23 COM/CIDS/DIR 2/BAT 121VU P14 146RH 23 COM/CIDS/DIR 1/BAT 121VU P13 147RH 23 COM/CIDS/BAT/CTL 121VU P12 148RH 23 COM NAV/VHF/2 121VU L04 2RC2 23 COM NAV/RMP/2 121VU L02 2RG2 23 COM NAV/SELCAL 121VU M04 8RN 23 COM NAV/ACP/THIRD/OCCPNT 121VU M02 6RN 23 EIS/HORN/SPLY 121VU P09 2WC 23 COM NAV/CIDS/FWD ATTND/PNL 121VU Q14 170RH 23 COM NAV/HF2 121VU L13 1RE2 23 COM / CIDS / DEU B / NORM FWD 121VU M09 193RH 23 COM NAV/CIDS/DEU A NORM/R AFT 121VU M13 168RH 23 COM NAV/CIDS/DEU A NORM/L AFT 121VU M12 167RH 23 COM NAV/CIDS/DEU A NORM/R MID 121VU M11 166RH 23 COM NAV/CIDS/DEU A NORM/L MID 121VU M10 165RH 23 COM NAV/CIDS/DEU A NORM/R FWD 121VU M09 164RH 23 COM NAV/CIDS/DEU A NORM/L FWD 121VU M08 163RH 23 COM NAV/CIDS/DEU B/NORM 121VU M07 162RH 23 COM NAV/CIDS/PROG AND TST PNL 121VU M06 161RH 23 COM NAV/CIDS/DIR 1 AND 2/NORM 121VU M05 151RH 23 COM/CIDS/DIR 1 AND 2/BAT 121VU N11 140RH 23 COM NAV/CIDS/DEU A NORM/R AFT 121VU M12 168RH 23 COM NAV/CIDS/DEU A NORM/L AFT 121VU M11 167RH 23 COM NAV/CIDS/DEU A NORM/R FWD 121VU M10 164RH 23 COM NAV/CIDS/DEU A NORM/L FWD 121VU M09 163RH 23 COM NAV/CIDS/DEU B/NORM 121VU M08 162RH 23 COM NAV/CIDS/DIR NORM/2 121VU M06 156RH 23 COM NAV/CIDS/DIR NORM/1 121VU M05 151RH 23 COM/FAP1/NORM 121VU Q14 170RH 23 DOORS/CKPT/VIDEO/SPLY 122VU T16 15RA 23 PES – VIDEO – INDICATOR 2000VU C06 28MH 23 PRAM 2000VU E01 2RX 23 PES VIDEO AFT – RH 2000VU C05 25MH 23 PES-VIDEO-CABIN AFT-LH 2000VU C04 23MH 23 PES VIDEO FWD – RH 2000VU C03 24MH 23 PES-VIDEO-CABIN FWD-LH 2000VU C02 22MH 23 PES VIDEO – CTL 2000VU C01 21MH 23 PES-PFIS 2000VU C07 189MH 23 PES-VIDEO-CABIN-AFT-RH 2000VU C06 25MH 23 PES-VIDEO-CABIN AFT-LH 2000VU C05 23MH 23 PES-VIDEO-CABIN-FWD-RH 2000VU C04 24MH 23 PES-VIDEO-CABIN FWD LH 2000VU C03 22MH 23 PES-VIDEO-CONTROL-VCC 2000VU C02 21MH 23 PES-VIDEO-CONTROL-MAIN 2000VU C01 20MH 23 PES – PVIS 2000VU C08 189MH 23 PES-VIDEO-CABIN AFT-RH 2000VU C06 25MH 23 PES-VIDEO-CABIN FWD-RH 2000VU C05 24MH 23 PES-VIDEO-CABIN LH 2000VU C03 22MH 23 PES-VIDEO-CTL-VCC 2000VU C02 21MH 23 PES VIDEO VCC 2000VU C01 20MH 23 PES MUSIC – CTL 2000VU D01 21MK 23 PES MUSIC-CABIN AFT-RH 2000VU D05 25MK 23 PES MUSIC-CABIN AFT-LH 2000VU D04 22MK 23 PES MUSIC-CABIN FWD-RH 2000VU D03 24MK 23 PES MUSIC-CABIN FWD-LH 2000VU D02 23MK 23 PES PVIS 2000VU C07 189MH 23 PES-VIDEO-AFT-RH 2000VU C06 25MH 23 PES-VIDEO-FWD-RH 2000VU C05 24MH 23 PES-VIDEO-AFT-LH 2000VU C04 23MH 23 PES-VIDEO-FWD-LH 2000VU C03 22MH 23 PES VIDEO CONTROL MAIN 2000VU C01 20MH 23 PES-MUSIC-CTL 2000VU D01 21MK 23 PES-PVIS 2000VU C07 189MH 23 PES-VIDEO-AFT 2000VU C06 25MH 23 PES-VIDEO-AFT-LH 2000VU C05 23MH 23 PES-VIDEO-CABIN-RH 2000VU C04 24MH 23 PES-VIDEO-CABIN FWD-LH 2000VU C03 22MH 23 PES-VIDEO-VCC CTL 2000VU C01 20MH 23 PES-AM-RADIO 2000VU C08 1RR 23 PES VIDEO AFT – RH 2000VU C04 23MH 23 PES VIDEO FWD – LH 2000VU C02 22MH 23 PES MUSIC AFT – RH 2000VU D05 25MK 23 PES MUSIC AFT – LH 2000VU D04 22MK 23 PES MUSIC FWD – RH 2000VU D03 24MK 23 PES MUSIC FWD – LH 2000VU D02 23MK 23 PES-VIDEO-CABIN FWD-RH 2000VU C04 24MH 23 PES-MUSIC-CABIN AFT-RH 2000VU D05 25MK 23 PES-MUSIC-CABIN AFT-LH 2000VU D04 22MK 23 PES-MUSIC-CABIN FWD-RH 2000VU D03 24MK 23 PES-MUSIC-CABIN FWD-LH 2000VU D02 23MK 23 PFIS 2000VU C07 189MH 23 PES-VIDEO-FWD LH 2000VU C03 22MH 23 PES-VIDEO-CTL MAIN 2000VU C01 20MH 23 PES-MUSIC-CABIN-FWD-LH 2000VU D02 23MK 23 PES – MUSIC – CTL 2000VU D01 21MK 23 PES-VIDEO-CABIN-LH 2000VU C03 22MH 23 PES MUSIC-CABIN-RH 2000VU D03 24MK 23 PES MUSIC-CABIN-LH 2000VU D02 23MK 23 PES-MUSIC-CABIN-RH 2000VU D03 24MK 23 PES-MUSIC-CABIN-LH 2000VU D02 23MK 23 PES-PFIS-AC 2000VU C08 188MH 23 IFE/SEAT-POWER-PAX SYS 2000VU C07 20MK 23 IFE-CABIN-ADB2 2000VU C06 24MK 23 IFE-CABIN-ADB1 2000VU C05 23MK 23 IFE-IFE CENTER-AC-IFEC 2000VU C04 22MK 23 IFE-IFE CENTER-AC-VCC 2000VU C02 21MH 23 IFE-IFE CENTER-DC-VCC 2000VU C01 20MH 23 IFE-VCC-SMOKE 2000VU D06 37MH 23 IFE-CABIN-AF-R/H 2000VU D04 25MH 23 IFE-CABIN-AF L/H 2000VU D03 23MH 23 IFE-CABIN-TU-R/H 2000VU D02 24MH 23 IFE-CABIN-TU-L/H 2000VU D01 22MH 23 PES-VIDEO-CABIN-RH AFT 2000VU C06 25MH 23 PES-VIDEO-CABIN-LH 2000VU C05 23MH 23 PES-VIDEO-CABIN-RH FWD 2000VU C04 24MH 23 PES-VIDEO-CABIN-LH FWD 2000VU C03 22MH 23 PES-MUSIC-CABIN-AFT-RH 2000VU D05 25MK 23 PES-MUSIC-CABIN-AFT-LH 2000VU D04 22MK 23 PES-MUSIC-CABIN-FWD-RH 2000VU D03 24MK 23 PES VIDEO AFT – LH 2000VU C04 23MH 23 CIDS/ DEU A NORM AFT RH 2001VU C08 174RH 23 CIDS/ DEU A NORM AFT LH 2001VU C07 173RH 23 CIDS/ DEU A NORM MID 2 RH 2001VU C06 176RH 23 CIDS/ DEU A NORM MID 2 LH 2001VU C05 175RH 23 CIDS-DEU B-NORM-AFT 2001VU C08 194RH 23 CIDS-DEU A NORM-AFT-RH 2001VU C07 174RH 23 CIDS-DEU A NORM-AFT-LH 2001VU C06 173RH 23 CIDS-DEU A NORM-MID-RH 2001VU C05 198RH 23 CIDS-DEU A NORM-MID-LH 001VU C04 197RH 23 PES-TELEPHONE 2000VU D08 1RD 23 PES-VIDEO-CTL-VCC 2000VU C02 21MH 23 PES – PFIS – RADVR 2000VU C08 188MH 23 PES-PFIS-DC 2000VU C07 189MH 23 IFE-IFE CENTER-DC-IFEC 2000VU C03 21MK 23 VACU TOIL SYS-LAV PWR 2001VU A02 45MG 23 VACU TOIL SYS-LAV PWR 2001VU A02 45MG 23 VACU TOIL SYS-LAV PWR 2001VU A04 34MG
ELECTRICAL CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 24 ELEC/AC BUS/8XP/MONG 49VU H11 6XH 24 ELEC/LT/CTL 49VU H10 13XG 24 ELEC/CSM/G /EV AUTO/SPLY 105VU C01 7XE 24 ELEC/HOT BUS/702PP SPLY 105VU D02 5PB2 24 ELEC/HOT BUS/701PP SPLY 105VU D01 5PB1 24 ELEC/HOT BUS/702PP SPLY 105VU E02 12PB2 24 ELEC/HOT BUS/701PP SPLY 105VU E01 12PB1 24 ELEC/BAT REF/BCL2 105VU F02 9PB2 24 ELEC/BAT REF/BCL1 105VU F01 9PB1 24 ELEC/STAT INV/CNTOR/CTL 105VU G02 14XB 24 ELEC/BAT BUS/REF/BCL1 105VU G01 8PB1 24 ELEC/STAT INV/BUS 901XP/SPLY 105VU H02 12XB 24 ELEC/BAT BUS/REF/BCL2 105VU J02 8PB2 24 AC ESS BUS/STBY/CNTOR/CTL 106VU B08 5XC 24 AC ESS BUS/EMER/CNTOR/CTL 106VU B07 5XE 24 26VAC/ESS BUS/SPLY 106VU B06 4XH 24 CSM/G /EV/MAN/SPLY 106VU B04 6XE 24 AC ESS/BUS NORM/CNTOR/CTL 106VU B03 4XC 24 AC ESS/BUS/EMER/CNTOR/SPLY 106VU C08 15PC 24 EMER/SHED/CNTOR/SPLY 106VU C07 1PH 24 AC ESS BUS/EMER/STBY/CNTOR/SPLY 106VU C06 10XE 24 AC ESS BUS/MONG/SPLY 106VU C05 2XH 24 AC/SHED/ESS BUS/CNTOR/CTL 106VU C04 1XH 24 ESS TR/CNTOR/CTL 106VU C02 5PE 24 ESS TR/SPLY 106VU C01 4PE 24 ELEC/GALLEY/CTL 122VU S26 1XA 24 ELEC/GALLEY/FAULT/LT CTL 122VU S25 8XA 24 ELEC/GALLEY/GND/FLT/LOGIC 122VU S24 7XA 24 ELEC/EXT PWR/COCKPIT/AVAIL/LT 122VU X28 12XG 24 APU GEN/EGIU2/28VDC 122VU Y31 26XU2 24 GEN2/EGIU2/28VDC 122VU Y30 24XU2 24 ELEC/APU/GCU 122VU Y25 6XS 24 ELEC/GPCU 122VU Y24 7XG 24 ELEC/EXT PWR/EGIU1/28VDC 122VU Z31 26XU1 24 ELEC/GEN1/EGIU1/28VDC 122VU Z30 24XU1 24 ELEC/GALLEY/CNTOR 122VU S28 7MC 24 ELEC/REFLNG/NORM 122VU S27 2PR 24 ELEC/GEN2/OFF/BTC2 SPLY 122VU T31 8XU 24 ELEC/GEN1/OFF/BTC2 SPLY 122VU T30 14XU 24 ELEC/GEN2/OFF/BTC1 SPLY 122VU T29 15XU 24 ELEC/GEN1/OFF/BTC1 SPLY 122VU T28 5XU 24 ELEC/GCU/2 122VU T27 2XU2 24 ELEC/GCU/1 122VU T26 2XU1 24 ELEC/IDG2/DISC 122VU T25 2XT 24 ELEC/IDG1/DISC 122VU T24 1XT 24 ELEC/DC SVCE/BUS/ON TR2 122VU U30 5PX 24 ELEC/RFL/SPLY/LOGIC 122VU U29 4PR 24 ELEC/REFLNG/ON/BAT 122VU U28 1PR 24 ELEC/CNTOR/DC BUS/TIE 1/FAULT 122VU U24 14PC 24 ELEC/AC PWR/SVCE/CTL 122VU V29 3XX 24 ELEC/BUS/2XP/CTL 122VU V27 17XN2 24 ELEC/AC/BUS1/CTL 122VU V25 17XN1 24 ELEC/DC BUS/TIE2//APU/START 122VU W31 18PC 24 ELEC/TR2/FAULT/DC BUS TIE/CONFIG 122VU W30 7PC2 24 ELEC/TR1/FAULT/DC BUS TIE/CONFIG 122VU W29 7PC1 24 ELEC/CNTOR/ESS/DC BUS/TIE 122VU W26 3PC 24 ELEC/CNTOR/DC/BUS/TIE1 122VU W25 9PC 24 ELEC/EXT PWR/LT CLT/AVAIL 122VU X31 4XG 24 ELEC/EXT PWR/LT CLT/NOT IN/USE 122VU X30 6XG 24 ELEC/EXT PWR/CTL 122VU X29 11XG 24 ELEC/TR2/MONG 122VU X26 3PU2 24 ELEC/TR1/MONG 122VU X25 3PU1 24 ELEC/DC/SVCE/BUS 122VU X24 5PN 24 ELEC/EMER GEN AUTO/2 122VU Z26 9XE 24 ELEC/EMER GEN AUTO/1 122VU Z25 11XE 24 ELEC/COML/SHED/SYS2 122VU V28 8XN 24 ELEC/COML/SHED/SYS1 122VU V26 9XN 24 ELEC/GAPCU 122VU W24 17XG 24 ELEC/GALY & CAB/CTL 122VU S26 1XA 24 ELEC/GALY & CAB/FAULT/LT CTL 122VU S25 8XA 24 ELEC/GALY & CAB/GND/FLT/LOGIC 122VU S24 7XA 24 ELEC/DC SHED BUS/CNTR 122VU U26 9PN 24 ELEC/AC SHED BUS/CNTOR 122VU U25 26XN 24 ESS NTWK AUTO ALTN 122VU V24 6XC 24 FWD GALLEY/FEEDER D 123VU AE02 2MC 24 EXT PWR/EGIU1/115VAC 123VU AA07 23XG 24 FWD GALLEY/FEEDER F 123VU AC10 16MC 24 GEN1/EGIU1/115VAC 123VU AF12 23XU1 24 GEN2/EGIU2/115VAC 123VU AF01 23XU2 24 APU GEN/EGIU2/115VAC 123VU AA08 23XS 24 SVCE/BUS 2/214XP SPLY 123VU AA05 4XX 24 BUS 1/131XP-A/SPLY 123VU AB12 5XN1 24 BUS 1/103XP/SPLY 123VU AB11 3XN1 24 TR1/SPLY 123VU AB10 2PU1 24 TR2/SVCE/BUS 2/SPLY 123VU AB08 1XX 24 GND/PWR/PROT 123VU AB07 2XG 24 SVCE/BUS 2/212XP SPLY 123VU AB05 2XX 24 TR2/214XP/SPLY 123VU AB04 2PU2 24 BUS 2/204XP/SPLY 123VU AB02 3XN2 24 BUS 2/231XP-A/SPLY 123VU AB01 5XN2 24 AC ESS/BUS ON/BUS 1 123VU AC12 1XC 24 AC ESS/BUS ON/BUS 2 123VU AC01 2XC 24 BUS 1/101XP/SPLY 123VU AD11 1XN1 24 BUS 2/212XP/SPLY 123VU AD03 10XN 24 BUS 2/202XP/SPLY 123VU AD02 1XN2 24 BUS 1/110XP/SPLY 123VU AF11 7XN1 24 AFT GALLEY/FEEDER A 123VU AF04 3MC 24 BUS 2/210XP/SPLY 123VU AF02 7XN2 24 FWD GALLEY/FEEDER D 123VU AD04 2MC 24 FWD GALLEY/FEEDER C 123VU AE10 1MC 24 AFT GALLEY/FEEDER E 123VU AF09 14MC 24 FWD GALLEY/FEEDER C 123VU AE03 1MC 24 AFT GALLEY/FEEDER B 123VU AD09 12MC 24 AFT GALLEY/FEEDER E 123VU 14MC 24 FWD GALLEY/FEEDER F 123VU 16MC 24 SHED BUS/218XP/220XP SPLY 123VU AC02 28XN 24 SVCE/601PP/602PP/SPLY 124VU BB01 1PX 24 TR2/CNTOR/SPLY 124VU BC01 4PU2 24 DC SVCE/602PP/SPLY 124VU BD01 7PN 24 206PP/208PP/SPLY 124VU BE01 6PN 24 204PP/SPLY 124VU BF01 3PN2 24 202PP/SPLY 124VU BG01 1PN2 24 SHED BUS 210PP/212PP/SPLY 124VU BA01 11PN 24 BAT BUS/301PP/SPLY 125VU CC01 11PB 24 101PP/SPLY 125VU CD01 1PN1 24 103PP/SPLY 125VU CE01 3PN1 24 TR1/CNTOR/SPLY 125VU CF01 4PU1 24 AINS/ANSU 122VU Y08 4TL 24 AINS/SIU 122VU Y07 2TL
EQUIPMENT & FURNISHINGS CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 25 PILOTS OUTLETS/STAT INV 121VU K25 1NA 25 PILOTS OUTLETS/115V 60HZ 121VU K23 2NA 25 COCKPIT SEATS/SEAT CTL/F/O 122VU U14 1MS2 25 COCKPIT SEATS/SEAT CTL/CAPT 122VU U11 1MS1 25 SEMI AUTO CLS FWD 2000VU E08 3MY 25 SEMI AUTO CLS FWD 2000VU E06 2MY 25 DR AREA HTG PANELS-DR2-HTR 2000VU A08 1DS 25 DR AREA HTG PANELS-DR2-CTL 2000VU A06 3DS 25 SEMI AUTO CLS-FWD 2000VU E08 3MY 25 SEMI AUTO CLS-FWD 2000VU E06 2MY 25 SEAT POWER-MCU 2 2000VU B08 59HP 25 SEAT POWER-MCU 1 2000VU B05 58HP 25 DR AREA HTG PNLS-CTL 2000VU F08 3DS 25 DR AREA HTG PNLS-FPH-DOOR2 2000VU F07 1DS 25 LAV SHAVER SOCKET 2001VU B01 1MT 25 SEMI AUTO CLS AFT 2001VU D08 103MY 25 SEMI AUTO CLS AFT 2001VU D06 102MY 25 DOOR AREA HTG PNL-DOOR3-HTR 2001VU F05 11DS 25 DR AREA HTG PNLS-DOOR 3-CTL 2001VU F03 13DS 25 MEDICAL OUTLET-AC 2001VU B08 7MF 25 MEDICAL OUTLET-DC 2001VU B07 6MF 25 SEMI AUTO CLS-AFT 2001VU D08 103MY 25 SEMI AUTO CLS-AFT 2001VU D06 102MY
FIRE PROTECTION CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 26 AIR COND/SDCU/CHAN1 49VU C06 11WQ 26 ENGINE/2/FIRE DET/LOOP B 49VU A07 8WD2 26 ENGINE/1/FIRE DET/LOOP A 49VU A06 7WD1 26 AIR COND/CARGO FIRE/EXTIG/BTL2 49VU C05 8WX 26 AIR COND/CARGO/FIRE/EXTIG/BTL1 49VU C04 1WX 26 AIR COND/CIDS/SDF/DIR2 ESS 49VU C06 18WH 26 AIR COND/CIDS/SDF/DIR1 ESS 49VU C05 15WH 26 AIR COND/CARGO FIRE/EXTIG/BTL2 49VU C04 8WX 26 AIR COND/CARGO/FIRE/EXTIG/BTL1 49VU C03 1WX 26 AIR COND/CARGO/FIRE/EXTIG 49VU C03 1WX 26 APU/FIRE AND OVHT/DET/LOOP B 121VU L44 2WG 26 APU/FIRE AND OVHT/DET/LOOP A 121VU L43 1WG 26 APU/AUTO/EXTIG/GND/TEST 121VU L40 30WF 26 APU/FIRE/EXTIG/SQUIB/B 121VU L39 2WF 26 APU/FIRE/EXTIG/SQUIB/A 121VU L38 1WF 26 APU/FIRE/LP VALVE/NORM 121VU M42 4WF 26 APU/FIRE/LP VALVE/STBY 121VU M41 3WF 26 ENGINE/ENG1 AND 2 FIRE EXTIG/BTL1/SQUIB/B 121VU Q44 2WE1 26 ENGINE/ENG1 AND 2 FIRE EXTIG/BTL1/SQUIB/A 121VU Q43 1WE1 26 ENGINE/ENG1 AND 2 FIRE EXTIG/BTL2/SQUIB/B 121VU Q42 2WE2 26 ENGINE/ENG1 AND 2 FIRE EXTIG/BTL2/SQUIB/A 121VU Q41 1WE2 26 ENGINE/ENG2/FIRE DET/LOOP A 121VU Q39 7WD2 26 ENGINE/ENG1/FIRE DET/LOOP B 121VU Q38 8WD1 26 AIR COND/CARGO/FIRE/EXTIG 122VU T19 1WX 26 AIR COND/SDCU/CHAN2 122VU T18 12WQ 26 AIR COND/CIDS/SDF/DIR NORM/2 122VU T18 14WH 26 AIR COND/CIDS/SDF/DIR NORM/1 122VU T17 17WH
FLIGHT CONTROLS CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 27 FLIGHT CONTROLS/SLT FLP/POS/IND 1 49VU B12 1CN 27 FLIGHT CONTROLS/ELAC1/NORM/SPLY 49VU B11 15CE1 27 FLIGHT CONTROLS/FCDC1/SPLY 49VU B10 20CE1 27 FLIGHT CONTROLS/THS/ACTR/MOT2 49VU B09 19CE2 27 FLIGHT CONTROLS/SEC1/NORM/SPLY 49VU B08 21CE1 27 FLIGHT CONTROLS/FLP/CTL AND MONG/SYS1 49VU B07 6CV 27 FLIGHT CONTROLS/SLT/CTL AND MONG/SYS1 49VU B06 5CV 27 FLIGHT CONTROLS/ELAC2/STBY SPLY 105VU A02 16CE2 27 FLT CTL/ELAC1/STBY SPLY 105VU A01 16CE1 27 FLT CTL/SEC1/STBY SPLY 105VU B01 22CE 27 FLIGHT CONTROLS/WTB/FLP/SYS2 121VU P20 12CV 27 FLIGHT CONTROLS/WTB/SLT/SYS2 121VU P19 11CV 27 FLIGHT CONTROLS/SLT FLP/POS/IND2 121VU P16 2CN 27 FLIGHT CONTROLS/FLP/CTL AND/MONG/SYS2 121VU Q21 8CV 27 FLIGHT CONTROLS/FCDC2/SPLY 121VU Q20 20CE2 27 FLIGHT CONTROLS/SEC3/SPLY 121VU Q19 21CE3 27 FLIGHT CONTROLS/SEC2/SPLY 121VU Q18 21CE2 27 FLIGHT CONTROLS/THS ACTR/MOT3 121VU Q17 19CE3 27 FLIGHT CONTROLS/THS ACTR/MOT1 121VU Q16 19CE1 27 FLIGHT CONTROLS/SLT/CTL/SYS2 121VU R21 7CV 27 FLIGHT CONTROLS/ELAC2/NORM/SPLY 121VU R20 15CE2 27 RUDDER FTU 121VU R16 75CE 27 FLIGHT CONTROLS/WTB/FLP/SYS1 122VU S07 10CV 27 FLIGHT CONTROLS/WTB/SLT/SYS1 122VU S06 9CV
FUEL SYSTEM CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 28 FUEL/AFT LOW LVL/& OVFL/WING R 49VU A11 44QJ 28 FUEL/AFT LOW LVL/& OVFL/WING L 49VU A10 43QJ 28 FUEL/SMOKE/CONFIG/PUMP CTL 49VU A14 55QA 28 FUEL/FQI/CHAN/1 49VU A13 1QT 28 FUEL/X FEED/VALVE/MOT1 49VU A12 2QE 28 FUEL/LP VALVE/MOT1/ENG2 49VU A09 2QG 28 FUEL/LP VALVE/MOT1/ENG1 49VU A08 1QG 28 APU/FUEL/BLOW OFF/PUMP 49VU B14 2QC 28 FUEL/XFR VALVE1/WING/R 49VU A11 2QP 28 FUEL/XFR VALVE1/WING/L 49VU A10 1QP 28 FUEL/FWD LOW LVL/WING/R 121VU M23 46QJ 28 FUEL/FWD LOW LVL/WING/L 121VU M22 45QJ 28 FUEL/CTR TK/AUTO/CTL 121VU R27 3QL 28 FUEL/CTR TK/L&R XFR/CTL & IND 121VU R26 2QL 28 FUEL/CTR TK/L&R XFR/CTL & IND 121VU R25 1QL 28 APU/FUEL/BLOW OFF/CTL 121VU K39 1QC 28 FUEL/FQI/CHANNEL/1 AND 2 121VU L26 8QT 28 FUEL/HI/LVL/SPLY 121VU L25 1QJ 28 FUEL/RFL/DFL/SPLY 121VU L24 2QU 28 FUEL/RFL/DFL/XFR/DEFUEL/VALVE 121VU L23 1QU 28 APU/FUEL/LP VALVE/CTL 121VU M40 1QF 28 APU/FUEL/LP VALVE/SPLY 121VU M39 2QF 28 APU/FUEL/PUMP/CTL 121VU M38 3QC 28 FUEL/FQI/CHAN/2 121VU M27 2QT 28 FUEL/LP VALVE/MOT2/ENG2 121VU M26 4QG 28 FUEL/LP VALVE/MOT2/ENG1 121VU M25 3QG 28 FUEL/X FEED/VALVE/MOT2 121VU M24 1QE 28 FUEL/L WING TK/PUMP2 SPLY 121VU N26 7QA 28 FUEL/L WING TK/PUMP1 SPLY 121VU N23 1QA 28 FUEL/R WING TK/PUMP2 SPLY 121VU Q26 8QA 28 FUEL/R WING TK/PUMP1 SPLY 121VU Q23 2QA 28 FUEL/PUMPS/2/R CTL AND L IND 121VU R29 10QA 28 FUEL/PUMPS/1/R CTL AND L IND 121VU R28 4QA 28 FUEL/PUMPS/2/L CTL AND R IND 121VU R24 9QA 28 FUEL/PUMPS/1/L CTL AND R IND 121VU R23 3QA 28 FUEL/FWD LOW LVL/WING/R 121VU M23 45QJ 28 FUEL/FWD LOW LVL/WING/L 121VU M22 46QJ 28 FUEL/XFR VALVE2/WING/R 121VU M23 4QP 28 FUEL/XFR VALVE2/WING/L 121VU M22 3QP 28 FUEL/CTR TK/PUMP2 SPLY 121VU P26 30QA 28 FUEL/CTR TK/PUMP1 SPLY 121VU P23 29QA 28 FUEL/CTR TK/AUTO/CTL 121VU R27 47QA 28 FUEL/CTR TK/PUMPS1 AND 2/CTL AND IND 121VU R26 32QA 28 FUEL/CTR TK/PUMPS1 AND 2/CTL AND IND 121VU R25 31QA 28 ACT1/REFUEL/VLV 121VU L29 33QU 28 ACT2/REFUEL/VLV 121VU L28 34QU 28 ACT1/XFR VALVE/AUTO CTL 121VU P29 9QH 28 ACT2/XFR VLV/AUTO CTL 121VU P28 10QH 28 ACT/RFL/VALVE 121VU L29 33QU 28 ACT/XFR VALVE/AUTO CTL 121VU P29 9QH 28 L WING TK/PUMP 1/STBY SPLY 123VU AD12 11QA 28 R WING TK/PUMP 1/STBY SPLY 123VU AE12 12QA 28 ACT LOW LVL R 121VU M29 51QJ 28 ACT LOW LVL L 121VU M28 52QJ 28 ACT XFR VALVE MAN CTL 121VU N29 30QH 28 ACT PUMP SUPPLY 121VU Q29 25QH
HYDRAULIC SYSTEM CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 29 HYD/FIRE VALVE/Y/ENG2 49VU C14 3702GD 29 HYD/FIRE VALVE/G/ENG1 49VU C13 1703GK 29 HYD/HYD PWR/B WARN/& CTL 49VU C12 2702GJ 29 HYD/HYD/PRESS/XMTR 49VU C11 1841GN 29 HYD/RAT/CTL 49VU D14 2801GE 29 HYDRAULIC/SOL VALVES/G/Y/B/LEAK/TST 121VU N35 1881GP 29 HYDRAULIC/SOL VALVES/G/Y/PTU 121VU N34 1801GL 29 HYDRAULIC/LOW/LVL/IND 121VU N32 1832GQ 29 HYDRAULIC/HYD POWER/Y 121VU N30 3803GX 29 HYDRAULIC/HYD/QTY/IND 121VU P35 1831GQ 29 HYDRAULIC/RAT/SPLY/EXTN/SOL1 121VU P33 2803GE 29 HYDRAULIC/Y HYD/PUMP ENG2/MONG 121VU Q37 3700GD 29 HYDRAULIC/Y HYD/PUMP ENG2/CTL 121VU Q36 3701GD 29 HYDRAULIC/G HYD/PUMP ENG1/CTL 121VU R35 1701GK 29 HYDRAULIC/G HYD/PUMP ENG1/MONG 121VU R34 1702GK 29 PTU INHIT/Y SYS 121VU Q33 1808GL 29 PTU INHIT/G SYS 121VU Q32 1807GL 29 B HYD/ELEC PUMP 123VU AB09 2701GJ 29 Y HYD/ELEC/PUMP 123VU AB06 3802GX 29 Y HYD/ELEC/ELEC PUMP/NORM 123VU AB03 3801GX
ICE & RAIN CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 30 ANTI ICE/WING/CTL 49VU C02 2DL 30 ANTI ICE/WING/MONG 49VU C01 1DL 30 ANTI ICE/PROBES/AOA/1 49VU D04 4DA1 30 ANTI ICE/PROBES/PHC/1 49VU D03 2DA1 30 ANTI ICE/PROBES/PITOT/1 49VU D02 3DA1 30 ANTI ICE/RAIN/RPLNT/CAPT 49VU D01 1DB1 30 ANTI ICE/WINDOWS/R 122VU W14 4DG2 30 ANTI ICE/WHC/2 122VU W13 5DG2 30 ANTI ICE/F/O/WIPER 122VU W12 4DB2 30 ANTI ICE/ENG/2 122VU W10 1DN2 30 ANTI ICE/WINDOWS/L 122VU X14 4DG1 30 ANTI ICE/WHC/1 122VU X13 5DG1 30 ANTI ICE/WIPER/CAPT 122VU X12 4DB1 30 ANTI ICE/ENG/1 122VU X10 1DN1 30 ANTI ICE/PROBES/PHC/3 122VU Y16 2DA3 30 ANTI ICE/PROBES/2/TAT 122VU Y15 1DA2 30 ANTI ICE/PROBES/2/PITOT 122VU Y14 3DA2 30 ANTI ICE/PROBES/2/AOA 122VU Y13 4DA2 30 ANTI ICE/PROBES/PHC/2 122VU Y12 2DA2 30 ANTI ICE/PROBES/2/STATIC 122VU Y11 5DA2 30 ANTI ICE/PROBES/P2/T2/ENG2 122VU Y10 11DA2 30 ANTI ICE/PROBES/3/PITOT 122VU Z16 3DA3 30 ANTI ICE/PROBES/3/AOA 122VU Z15 4DA3 30 ANTI ICE/PROBES/3/STATIC 122VU Z14 5DA3 30 ANTI ICE/PROBES/1/STATIC 122VU Z13 5DA1 30 ANTI ICE/PROBES/1/TAT 122VU Z12 1DA1 30 ANTI ICE/PROBES/P2/T2/ENG1 122VU Z10 11DA1 30 ANTI ICE/ICE DET/R 122VU V13 4DD2 30 ANTI ICE/ICE DET/L 122VU V12 4DD1 30 ANTI ICE/RAIN/RPLNT/F/O 122VU W11 1DB2 30 ANTI ICE/L/WHSLD 123VU AF10 1DG1 30 ANTI ICE/R/WHSLD 123VU AF03 1DG2 30 POT/WASTE WIP HEATER LINE 2000VU A03 1DW 30 POT/WASTE WIP-HEATER-CTL 2000VU A02 2DW 30 WASTE WIP-DRAINMAST-FWD 2000VU B06 1DU 30 WASTE WIP-HEATER-CTL 2000VU B05 9DU 30 WASTE WIP-HEATER-LINE 2000VU B04 8DU 30 POT WIP-HEATER-LINE 2000VU A02 1DW 30 POT WIP-HEATER-CTL 2000VU A01 2DW 30 POT WIP-HEATER-LINE 2000VU A03 1DW 30 WASTE WIP-CARGO DRAIN VALVE 2000VU B08 20DU 30 WASTE WIP-HEATER CTL 2000VU B05 9DU 30 WASTE WIP-HEATER LINE 2000VU B04 8DU 30 WASTE WIP-HEATER-LINE 2000VU B03 101DU 30 WASTE WIP-HEATER-LINE 2000VU B02 102DU 30 POT/WASTE WIP-HEATER-LINE 2000VU A02 1DW 30 POT/WASTE WIP-HEATER-CTL 2000VU A01 2DW 30 POT/WASTE WIP-HEATER-LINE 2000VU A03 21DW 30 WASTE WIP-DRAINMAST-FWD 2000VU B03 1DU 30 WASTE WIP-HEATER-CTL 2000VU B02 9DU 30 WASTE WIP-HEATER-LINE 2000VU B01 8DU 30 POT WIP-HEATER-CTL 2000VU A02 2DW 30 POT WIP-SVCE-PNL 2001VU D01 15DV 30 WASTE WIP-DRAINMAST-AFT 2001VU E01 11DU 30 WASTE WIP-HEATER CTL 2001VU E03 10DU 30 WASTE WIP-HEATER-LINE 2001VU E04 22DU 30 WASTE WIP-DRAINMAST-MID 2001VU E02 21DU 30 WASTE WIP-HEATER-CTL 2001VU E03 10DU 30 POT/WASTE WIP HEATER LINE 2001VU D03 31DW 30 POT/WASTE WIP HEATER CTL 2001VU D02 32DW 30 WASTE WIP CARGO DRAIN VALVE 2001VU E05 32DU 30 POT/WASTE WIP-HEATER-LINE 2001VU D04 51DW 30 POT/WASTE WIP-HEATER-LINE 2001VU D03 31DW 30 POT/WASTE WIP-HEATER-CTL 2001VU D02 32DW 30 WASTE WIP-HEATER-LINE 2001VU E04 31DU
INSTRUMENT SYSTEM CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 31 EIS/RLY/BOX/CAPT 49VU E08 17WT1 31 EIS/PFD CAPT/SPLY 49VU E03 11WT1 31 EIS/ECAM/CTL/PNL 49VU E12 15WT 31 EIS/DMC1/SPLY 49VU E11 10WT1 31 EIS/DMC3/STBY/SPLY 49VU E10 14WT1 31 EIS/DMC1/SWTG 49VU E09 21WT1 31 EIS/DMC3/SWTG 49VU E07 21WT3 31 EIS/ECAM DU/UPPER/SWTG 49VU E06 24WT1 31 EIS/ECAM DU/UPPER/SPLY 49VU E05 13WT1 31 EIS/PFD CAPT/SWTG 49VU E04 22WT1 31 EIS/ND CAPT/SWTG 49VU E02 23WT1 31 EIS/ND CAPT/SPLY 49VU E01 12WT1 31 CLOCK/NORM/SPLY 49VU F11 6FS 31 CAPT/LOUD/SPKR 49VU F10 5WW 31 SDAC/1 AND 2/28VDC/ESS BUS 49VU F05 12WV 31 SDAC/1/SPLY 49VU F04 3WV 31 SDAC/2/26VAC SYNC/AC ESS BUS 49VU F03 6WV 31 SDAC/1/26VAC SYNC/AC ESS BUS 49VU F02 5WV 31 FWS/FWC1/SPLY 49VU F01 3WW 31 NAV/DME/1 49VU G14 1SD1 31 EIS/PFD/CAPT/SPLY 49VU E03 11WT1 31 EMER/GEN/REF 106VU B05 27WV 31 DC BUS/1 AND 2/MONG 106VU C03 68WV 31 FDIU 121VU K17 8TU 31 AIDS/DMU 121VU K15 4TV 31 DLS&/DLRB/SPLY 121VU J15 5TD 31 CLOCK/STBY/SPLY 121VU N02 4FS 31 EIS/SDAC/1/BUS1/26VAC SYNC AC 121VU Q04 9WV 31 EIS/RLY/BOX/F/O 121VU R07 17WT2 31 PTR/SPLY 121VU J21 6TW 31 CFDS/TEST PLUG/2 121VU J20 10TW 31 CFDS/TEST PLUG/1 121VU J19 9TW 31 CFDS/CFDIU/SPLY 121VU J18 2TW 31 CFDS/CFDIU/BACK/UP 121VU J17 8TW 31 DATA/LOADER/SPLY 121VU J16 3TD 31 RCDR/ACCLRM 121VU K18 9TU 31 RCDR/DFDR 121VU K16 7TU 31 COM NAV/DME/2 121VU K06 1SD2 31 EIS/F/O/LOUD/SPKR 121VU P08 4WW 31 EIS/SDAC1 AND 2/DOOR/DET/PAX 121VU P05 48WV 31 EIS/SDAC1 AND 2/BUS1/28VDC 121VU P04 14WV 31 EIS/SDAC1 AND 2/BUS2/28VDC 121VU P03 44WV 31 EIS/SDAC1 AND 2/DOOR/DET/AVNCS 121VU P02 46WV 31 EIS/DMC3/SPLY 121VU Q09 10WT3 31 EIS/DMC2/SPLY 121VU Q08 10WT2 31 EIS/FWC2/SPLY 121VU Q07 2WW 31 EIS/SDAC/2/SPLY 121VU Q06 2WV 31 EIS/SDAC/2/BUS1/26VAC SYNC AC 121VU Q05 10WV 31 EIS/SDAC/1/BUS2/26VAC SYNC AC 121VU Q03 7WV 31 EIS/SDAC/2/BUS2/26VAC SYNC AC 121VU Q02 8WV 31 EIS/ECAM DU/LOWER/SPLY 121VU R11 13WT2 31 EIS/ECAM DU/LOWER/SWTG 121VU R10 24WT2 31 EIS/DMC2/SWTG 121VU R08 21WT2 31 EIS/ND/F/O/SWTG 121VU R06 23WT2 31 EIS/PFD/F/O/SWTG 121VU R05 22WT2 31 EIS/ND/F/O 121VU R04 12WT2 31 EIS/PFD/F/O 121VU R03 11WT2 31 AIDS & RCDR/QAR 121VU K17 14TU 31 AIDS & RCDR/FDIMU 121VU K15 5TV 31 FDIU & QAR 121VU K17 8TU 31 CLOCK/STBY/SPLY 121VU N03 4FS 31 PDL/PWR/SPLY 121VU K19 14TD
LANDING GEAR CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 32 L/G/Y BRK/PRESS/IND 49VU C10 61GG 32 L/G/LGCIU/SYS1/NORM 49VU C09 1GA 32 ABCU &/Y BRK/PRESS IND 49VU C10 61GG 32 HYDRAULIC/BRK FAN/WHEELS/3 AND 4 121VU L35 2GS 32 HYDRAULIC/BRK FAN/WHEELS/1 AND 2 121VU L32 1GS 32 HYDRAULIC/BRK/TEMP/DET/UNIT 121VU M37 1GW 32 HYDRAULIC/BRAKING AND STEERING/SYS2/SPLY 121VU M36 4GG 32 HYDRAULIC/BRAKING AND STEERING/SYS2/CTL 121VU M35 3GG 32 HYDRAULIC/BRAKING AND STEERING/SYS1/CTL 121VU M34 1GG 32 HYDRAULIC/BRAKING AND STEERING/SYS1/IND AND/SPLY 121VU M33 2GG 32 HYDRAULIC/BRK/FAN/CTL 121VU M32 3GS 32 HYDRAULIC/PARK BRK/CTL/STBY 121VU N37 71GG 32 HYDRAULIC/PARK BRK/CTL/NORM 121VU N36 70GG 32 HYDRAULIC/LGCIU/SYS2 121VU Q35 2GA 32 HYDRAULIC/LGCIU/SYS1/GRND SPLY 121VU Q34 52GA 32 ABCU/HOT BUS/SPLY 121VU P30 110GG 32 HYDRAULIC/TIRE/PRESS 121VU M31 1GV 32 LGCIU/BAT SPLY/SYS2 121VU R33 59GA 32 LGCIU/BAT SPLY/SYS1 121VU R32 58GA 32 PTU INHIT/Y SYS 121VU Q33 1808GL 32 PTU INHIT/G SYS 121VU Q32 1807GL
LIGHTING SYSTEM CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 33 LIGHTING/EMER LT/CKPT/DOME 49VU H08 1LE 33 LIGHTING/EMER LT/CABIN 49VU H07 79WL 33 LIGHTING/EMER LT/CABIN 49VU H06 2WL 33 LIGHTING/EMER LT/CABIN 49VU H05 1WL 33 LIGHTING/ICE AND STBY/COMP/LIGHT 49VU H04 1LF 33 LIGHTING/XFMR/115V.5V/ESS BUS 49VU H03 29LP 33 LIGHTING/LANDING LT/R/CTL 122VU T07 4LB 33 LIGHTING/LANDING LT/R/SPLY 122VU T06 2LB 33 LIGHTING/LANDING LT/L/CTL 122VU T05 3LB 33 LIGHTING/LANDING LT/L/SPLY 122VU T04 1LB 33 LIGHTING/EXT LT/NAV1/AND LOGO/LT 122VU T03 1LA 33 LIGHTING/EXT LT/NAV2/AND LOGO/LT 122VU T02 2LA 33 LIGHTING/EXT LT/BEACON/UPPER 122VU U06 1LV 33 LIGHTING/EXT LT/BEACON/LOWER 122VU U03 5LV 33 LIGHTING/CABIN/EMER/LT 122VU V07 3WL 33 LIGHTING/WING/STROBE 122VU V05 10LV 33 LIGHTING/LOGO/L 122VU V03 2LY 33 LIGHTING/LOGO/R 122VU V02 1LY 33 LIGHTING/EXT LT/TAXI AND TAKE OFF/CTL 122VU W09 2LR 33 LIGHTING/EXT LT/TAXI AND TAKE OFF/TAXI 122VU W08 1LR 33 LIGHTING/EXT LT/TAXI AND TAKE OFF/TO 122VU W07 3LR 33 LIGHTING/EXT LT/RWY TURN OFF/L 122VU W06 1LC1 33 LIGHTING/EXT LT/RWY TURN OFF/R 122VU W05 1LC2 33 LIGHTING/EXT LT/WING/AND ENG SCAN/R 122VU W03 1LX 33 LIGHTING/EXT LT/WING/AND ENG SCAN/L 122VU W02 5LX 33 LIGHTING/WHL WELL/LTG/DOME 122VU X08 2LL 33 LIGHTING/WHL WELL/LTG/OUT 122VU X07 1LL 33 LIGHTING/TST/BOARD/SPLY 122VU X06 30LP 33 LIGHTING/ANN LT SPLY/XFMR/BUS 2 122VU X05 27LP 33 LIGHTING/ANN LT SPLY/XFMR/BUS 1 122VU X04 26LP 33 LIGHTING/ANN LT SPLY/XFMR/STAT INV 122VU X03 28LP 33 LIGHTING/CKPT/DOME 122VU Y06 3LE 33 LIGHTING/INSTL LT/GLARE/SHLD 122VU Y05 5LF 33 LIGHTING/INSTL LT/MAIN INST/PNL AND/PED 122VU Y04 4LF 33 LIGHTING/INSTL LT/OVHD/PNL 122VU Y03 3LF 33 LIGHTING/AVNCS COMPT/OUT/115VAC 122VU Z09 12LS 33 LIGHTING/AVNCS COMPT/OUT/28VDC 122VU Z08 11LS 33 LIGHTING/AVNCS COMPT/DOME 122VU Z07 1LS 33 LIGHTING/FLOOD/F/O/SIDE 122VU Z06 4LE 33 LIGHTING/FLOOD/CAPT/SIDE 122VU Z05 5LE 33 LIGHTING/FLOOD/CTR INST/PNL 122VU Z04 2LE 33 LAV FWD & MID-OCCUPIED 2000VU F01 1WJ 33 LIGHT-ATTND-WORK 2000VU J03 1LZ 33 AIR CONDTN-COMPT-OUTLET 2000VU G08 1LK 33 PASSENGER READING LIGHT 2000VU G06 6LW 33 PASSENGER READING LIGHT 2000VU G05 5LW 33 PASSENGER READING LIGHT 2000VU G04 4LW 33 PASSENGER READING LIGHT 2000VU G03 3LW 33 PASSENGER READING LIGHT 2000VU G02 2LW 33 PASSENGER READING LIGHT 2000VU G01 1LW 33 CAB LIGHT PWR-CEILING-AFT 2000VU H08 307LG 33 CAB LIGHT PWR-CEILING-AFT 2000VU H07 304LG 33 CAB LIGHT PWR-CEILING-FWD 2000VU H06 306LG 33 CAB LIGHT PWR-CEILING-FWD 2000VU H05 305LG 33 CAB LIGHT PWR-WINDOW-AFT 2000VU H04 302LG 33 CAB LIGHT PWR-WINDOW-AFT 2000VU H03 301LG 33 CAB LIGHT PWR-WINDOW-FWD 2000VU H02 303LG 33 CAB LIGHT PWR-WINDOW-FWD 2000VU H01 300LG 33 LIGHT-LDG-AREA 2000VU J08 3LU 33 LIGHT-CARGO COMPT-AFT 2000VU J07 2LU 33 LIGHT-CARGO COMPT-FWD 2000VU J06 1LU 33 LIGHT-CABIN-ENTRY 2000VU J02 308LG 33 LIGHT-LAV 2000VU J01 1LQ 33 LIGHT – STWG 2000VU J06 100LZ 33 LIGHT – STWG 2000VU J04 100LZ 33 LAV FWD-OCCUPIED 2000VU F01 1WJ 33 LIGHT-ATTND-WORK 2000VU J05 1LZ 33 LIGHT-STWG 2000VU J04 100LZ 33 LAVATORY AFT-OCCUPIED 2001VU B04 11WJ 33 LIGHT-APU 2001VU E08 2LJ 33 LIGHT-SEC 19 2001VU E07 1LJ 33 LIGHT-STWG 2001VU E06 111LZ
NAVIGATION CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 34 NAV/STBY/ALTM 49VU F14 16FN 34 NAV/STBY/HORIZON 49VU F12 5FN 34 NAV/VOR/DME/RMI 49VU F13 12FN 34 NAV PROBES/ADIRU3/PWR/SWTG 49VU F09 8FP 34 NAV PROBES/ADIRU 1/AND AOA 1/26VAC 49VU F07 5FP1 34 NAV PROBES/ADIRU1/115VAC 49VU F06 4FP1 34 NAV/VOR/1 49VU G13 2RS1 34 NAV/MMR/1 49VU G12 42RT1 34 COM NAV/ATC/1 49VU G11 5SH1 34 NAV/ADF/1 49VU H14 1RP1 34 NAV/STBY/INST 49VU F12 5FN 34 ADIRS/ADIRU1/28VDC 105VU C02 6FP1 34 NAV/STBY/INST/BAT 105VU J01 23FN 34 COM NAV/MMR/2 121VU K09 42RT2 34 COM NAV/ADF/2 121VU K02 1RP2 34 ADIRS/ADIRU/2PWR/SHED 121VU N10 10FP 34 ADIRS/ADIRU/3PWR/SWTG 121VU N09 9FP 34 ADIRS/ADIRU/2/26VAC AND AOA 121VU N08 5FP2 34 ADIRS/ADIRU/3/26VAC AND AOA 121VU N07 5FP3 34 ADIRS/ADIRU/2/115VAC 121VU N06 4FP2 34 ADIRS/ADIRU/3/115VAC 121VU N05 4FP3 34 ADIRS/ADIRU/2/28VDC 121VU N04 6FP2 34 ADIRS/ADIRU/3/28VDC 121VU N03 6FP3 34 COM NAV/RADAR/1 121VU K13 5SQ1 34 COM NAV/RAD ALTM/2 121VU K12 1SA2 34 COM NAV/RAD ALTM/1 121VU K11 1SA1 34 COM NAV/VOR/2 121VU K08 2RS2 34 COM NAV/ATC/2 121VU K07 5SH2 34 EIS/GPWS/115VAC 121VU P07 3WZ 34 EIS/GPWS/28VDC 121VU P06 2WZ 34 COM NAV/MMR/2 121VU L07 42RT2 34 COM NAV/RADAR/2 121VU K14 5SQ2 34 COM NAV/TCAS 121VU K10 4SG 34 ADIRS/ADIRU/2PWR/SHED 121VU N11 10FP 34 ADIRS/ADIRU/3PWR/SWTG 121VU N10 9FP 34 ADIRS/ADIRU/2/26VAC AND AOA 121VU N09 5FP2 34 ADIRS/ADIRU/3/26VAC AND AOA 121VU N08 5FP3 34 ADIRS/ADIRU/2/115VAC 121VU N07 4FP2 34 ADIRS/ADIRU/3/115VAC 121VU N06 4FP3 34 ADIRS/ADIRU/2/28VDC 121VU N05 6FP2 34 ADIRS/ADIRU/3/28VDC 121VU N04 6FP3 34 COM NAV/ACP/AVNCS/COMPT 121VU M03 7RN
OXYGEN CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 35 OXYGEN/PASSENGER/ACTUATION 49VU HA08 7WR 35 OXYGEN/PASSENGER/ACTUATION 49VU HA07 6WR 35 OXYGEN/PASSENGER/ACTUATION 49VU HA06 5WR 35 OXYGEN/PASSENGER/ACTUATION 49VU HA05 4WR 35 OXYGEN/PASSENGER/CTL AND WARN 49VU HA04 3WR 35 OXYGEN/PASSENGER/CTL AND WARN 49VU HA03 2WR 35 OXYGEN/PASSENGER/CTL AND WARN 49VU HA02 1WR 35 OXYGEN/CREW/OXY/SPLY 49VU HA01 1HT
PNEUMATICS CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 36 AIR BLEED/X FEED/VALVE/BAT 49VU D13 2HV 36 AIR BLEED/ENG 1/CTL 49VU D12 3HA1 36 AIR BLEED/ENG 1/MONG 49VU D11 2HA1 36 AIR BLEED/ENG 2/CTL 122VU Z23 3HA2 36 AIR BLEED/ENG 2/MONG 122VU Z22 2HA2 36 AIR BLEED/X FEED VALVE/NORM 122VU Z20 1HV
WATER/WASTE CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 38 LAV FWD-HOT WATER-A 2000VU F02 1MB 38 LAV FWD-HOT WATER-A/B 2000VU F02 1MB 38 LAV FWD&MID-HOT WATER-A 2000VU F02 1MB 38 LAV FWD & MID HOT WATER 2000VU F03 10MB 38 WATER SYSTEM-QANT-IND 2000VU B01 1MA 38 LAV FWD & MID-HOT WATER-A 2000VU F02 1MB 38 LAV FWD & MID-HOT WATER 2000VU F02 1MB 38 VACU TOIL SYS-LAV PWR 2001VU A04 34MG 38 LAV AFT-HOT WATER-E 2001VU B03 9MB 38 LAV AFT-HOT WATER 2001VU B02 2MB 38 VACU TOIL SYS-LAV PWR-D 2001VU A03 39MG 38 VACU TOIL SYS-LAV PWR-A 2001VU A01 32MG 38 WATER SYS-QUANT-IND 2001VU B06 1MA 38 WATER SYS-DRAIN 2001VU B05 1MP 38 VACU TOIL SYS-VACUUM-GEN 2001VU A08 33MG 38 VACU TOIL SYS-VACU-SYS 2001VU A06 35MG 38 VACU TOIL SYS-LAV PWR-D 2001VU A04 34MG 38 LAV AFT HOT WATER E 2001VU B03 9MB 38 LAV AFT-HOT WATER-D 2001VU B02 2MB 38 VACU TOIL SYS LAV PWR D 2001VU A03 39MG 38 LAV AFT HOT WATER L,M 2001VU B03 9MB 38 VACU TOIL SYS-LAV PWR-L 2001VU A04 34MG 38 VACU TOIL SYS-LAV PWR-M 2001VU A02 45MG 38 LAV MID HOT WATER L,M 2001VU B03 9MB 38 VACU TOIL SYS-LAV PWR-E 2001VU A04 34MG 38 VACU TOIL SYS-LAV PWR-B 2001VU A03 39MG 38 VACU TOIL SYS-LAV PWR-H 2001VU A02 45MG 38 VACU TOIL SYS-LAV PWR 2001VU A01 32MG 38 LAV AFT-HOT WATER-F 2001VU B03 9MB 38 WATER SYS-AIR-COMPRESSOR 2001VU F01 19MD 38 VACU TOIL SYS-LAV PWR-E 2001VU B05 34MG 38 LAV AFT-HOT WATER-L/M 2001VU B03 9MB 38 LAV AFT HOT WATER H 2001VU B03 9MB 38 VACU TOIL SYS-LAV PWR- 2001VU B01 32MG 38 WATER-SYS-DRAIN 2001VU B05 1MP 38 VACU TOIL SYS-LAV PWR- 2001VU B04 39MG 38 VACU TOIL SYS-LAV PWR-H 2001VU A04 34MG 38 LAV AFT-HOT WATER-E/H 2001VU C03 9MB 38 VACU TOIL SYS-LAV PWR-L 2001VU A02 45MG 38 LAV AFT-HOT WATER-D/L 2001VU B02 2MB 38 VACU TOIL SYS-LAV PWR 2001VU A03 39MG 38 LAVATORY AFT-HOT WATER-D 2001VU B02 2MB
INFORMATION SYSTEMS CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 46 ATSU 1 121VU L16 3TX1 46 ATSU 1/SWTG 121VU L15 5TX1 46 DCDU 2 121VU L18 6TX2 46 DCDU 1 121VU L17 6TX1
APU CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 49 APU/OIL/HTR/SPLY 121VU K41 1KT 49 APU/APU/CTL 121VU L42 2KD 49 APU/ECB/SPLY 121VU L41 1KD
DOORS CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 52 EIS/SLIDES/ARM AND WARN/FLT 121VU P11 15WN 52 EIS/SLIDES/ARM AND WARN/GND 121VU P10 13WN 52 DOORS/PAX/MONG 122VU T13 1MQ 52 DOORS/CARGO 122VU T12 1MJ 52 DOORS CKPT LOCK 122VU T13 1MQ 52 DOOR AREA HTG PANELS-CTL 2000VU A07 54DS 52 DR AREA HTG PNLS-DR1-FPH-RH 2000VU A06 52DS 52 DR AREA HTG PNLS-DR1-FPH-LH 2000VU A05 51DS
ENGINE CIRCUIT BREAKERS ATA DESCRIPTION PANEL LOCATION FIN 70 ENGINE/2/FADEC A/AND EIU 2 49VU A05 2KS2 70 ENGINE/1/FADEC A/AND EIU 1 49VU A04 2KS1 70 ENGINE/1 AND 2/IGN/SYS A 49VU A03 1JH 70 ENGINE/2/HP FUEL SOV 49VU A02 1KC2 70 ENGINE/1/HP FUEL SOV 49VU A01 1KC1 70 ENG2/REV/LOCK 121VU N45 1EG2 70 ENG1/REV/LOCK 121VU N44 1EG1 70 ENGINE/ENG2/OIL/PRESS/AND REV SNSR/CHAN A 121VU N42 2EN2 70 ENGINE/ENG2/OIL/QTY 121VU N41 1EN2 70 ENGINE/ENG1/OIL/PRESS/AND REV SNSR/CHAN A 121VU N40 2EN1 70 ENGINE/ENG1/OIL/QTY 121VU N39 1EN1 70 ENGINE/IGN/ENG2/SYS B 121VU P42 3JH2 70 ENGINE/IGN/ENG1/SYS B 121VU P41 3JH1 70 ENGINE/IGN/ENG2/SYS A BAT 121VU P40 2JH2 70 ENGINE/IGN/ENG1/SYS A BAT 121VU P39 2JH1 70 ENGINE/ENG2/FADEC B 121VU Q40 4KS2 70 ENGINE/ENG1 AND 2/EVMU 121VU R44 1EV 70 ENGINE/ENG1/FADEC B/AND EIU 1 121VU R41 4KS1
