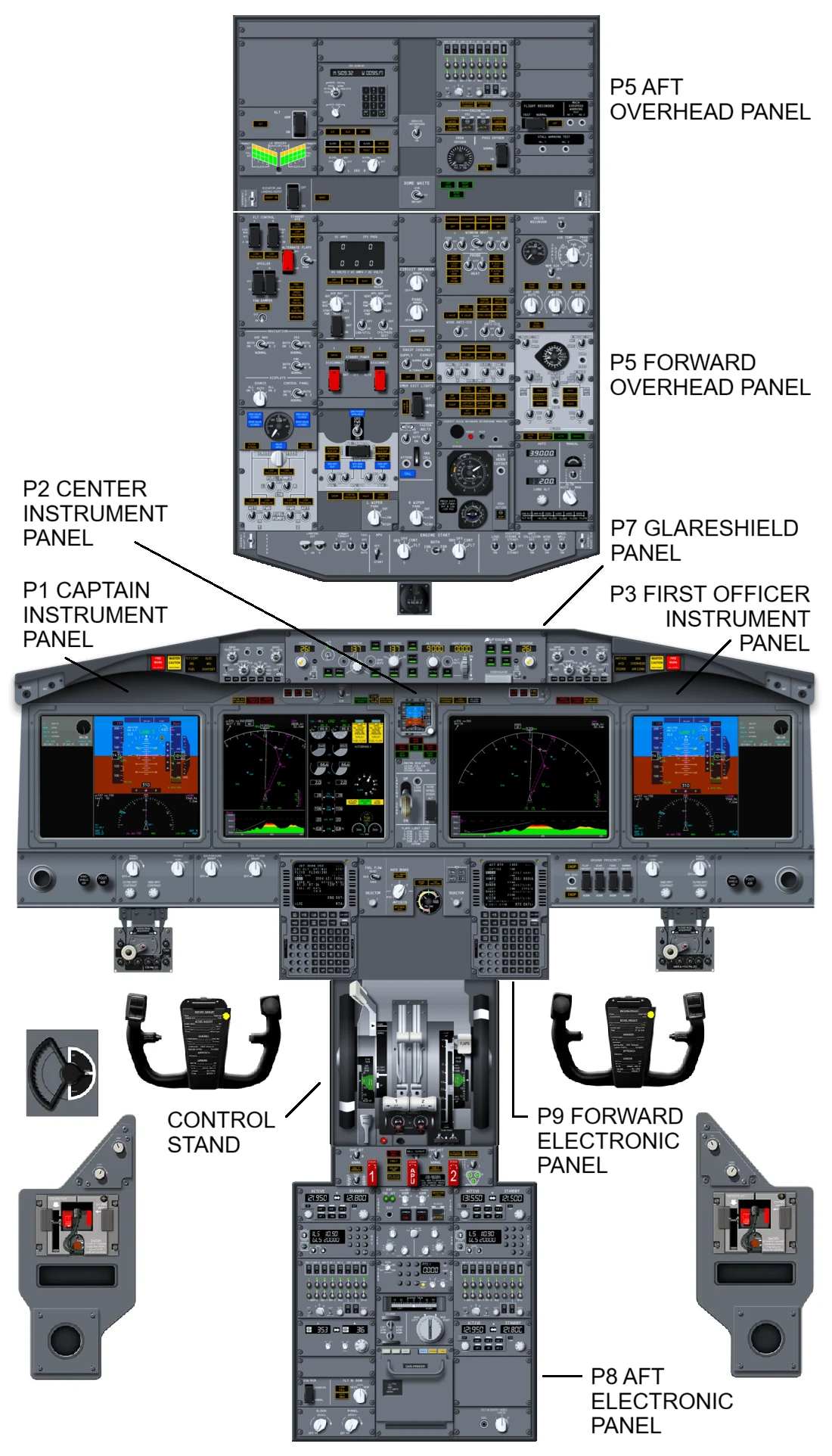

Boeing 737 MAX Cockpit Panels
P1 & P3 MAIN INSTRUMENT PANEL
- Display Units
- Lighting Control
- Speed Brake Lights
- GPWS Control Panel
- Display Selector Switch
- Stabilizer Out of Trim Light
- Master Lights Test and Dim Switch
- Autopilot / Autothrottle Indicators
- Takeoff Configuration and Cabin Altitude Warning Lights
Go to panel: P1 • P2 • P3 • P5F • P5A • P7 • P8 • P9 • CS
P2 CENTER INSTRUMENT PANEL
- Integrated Standby Flight Display
- L/G Lock Override
- Landing Gear Lever
- Landing Gear Position Indicator
- Nose Wheel Steering Switch
- FLAPS LIMIT Placard
Go to panel: P1 • P2 • P3 • P5F • P5A • P7 • P8 • P9 • CS
P5 FWD OVERHEAD PANEL
- Flight Control Panel
- VHF-NAV, IRS, FMC Switch
- Display Source Select Panel
- Fuel Control Panel
- AC and DC Meter Panel
- APU Control Switch
- APU Warning Light Panel
- Equipment Cooling Panel
- Exterior Light Switches
- Wiper Selector Panel
- Window Heat Panel
- Probe Heat Panel
- Hydraulic Control Panel
- Anti-ice Panel
- Door Warning Panel
- Bleed Air Control Panel
- Air Conditioning Panel
- Temperature Control Panel
- Cabin Pressure Control Panel
- Cabin Altitude Panel
- Cockpit Voice Recorder Panel
- Engine Start Panel
- Passenger Signs Panel
- Emergency Evacuation Panel
- Ground Power and Bus Switching Panel
- Generator Drive and Standby Power Panel
Go to panel: P1 • P2 • P3 • P5F • P5A • P7 • P8 • P9 • CS
P5 AFT OVERHEAD PANEL
- ELT Control Panel
- IRS Display Unit
- IRS Mode Select Unit
- Engine Panel
- Oxygen Panel
- Stall Warning Test Switches
- Flight Recorder Panel
- Observer Audio Control Panel
- Leading Edge Devices Annunciator Panel
- Mach Airspeed Warning Test Switches
- Elevator Jam Landing Assist Light and Switch
- Maintenance Light
- White Dome Light Switch
- Landing Gear Indicator Lights
Go to panel: P1 • P2 • P3 • P5F • P5A • P7 • P8 • P9 • CS
P7 GLARESHIELD PANEL
- EFIS Control Panel
- Fire Warning Light
- Master Caution Light
- System Annunciator Panel
- Mode Control Panel (MCP)
- Microphone Switch
- Clock Switch
Go to panel: P1 • P2 • P3 • P5F • P5A • P7 • P8 • P9 • CS
P8 AFT ELECTRONICS PANEL
- Overheat/Fire Protection Panel
- Radio Tuning Panel
- Cargo Fire Control Panel
- Navigation Control Panel
- ATC/TCAS Control Panel
- Audio Control Panel
- Weather Radar Control Panel
- SELCAL Control Panel
- ACMS Printer
- Lighting Control
- Aileron/Rudder Trim Panel
- STAB Trim Panel
- FLT DK DOOR Panel
- ADF Control Panel
Go to panel: P1 • P2 • P3 • P5F • P5A • P7 • P8 • P9 • CS
P9 FWD ELECTRONICS PANEL
- Multi-function Control Display Unit (MCDU)
- Fuel Flow Indication Control Switch
- Antiskid and Autobrake Switch and Lights
- Brake Temperature Indicator
- Tire Pressure Indicator
- Brake Pressure Indicator
- MFD Control Switches
- Display Selector Switches
Go to panel: P1 • P2 • P3 • P5F • P5A • P7 • P8 • P9 • CS
CONTROL STAND
- Speedbrake Handle
- Forward Thrust Levers
- Reverse Thrust Levers
- Flap Lever and Position Indicator
- Horizontal Stabilizer Trim Wheel
- Horizontal Stabilizer Trim Indicator
- Engine Start Levers
- Parking Brake Lever and Light
- L/G Warning HORN CUTOUT switch
- Stabilizer Trim Cutout Switch
- Autothrottle Disengage Switches
- Takeoff/Go-Around (TO/GA) Switches
